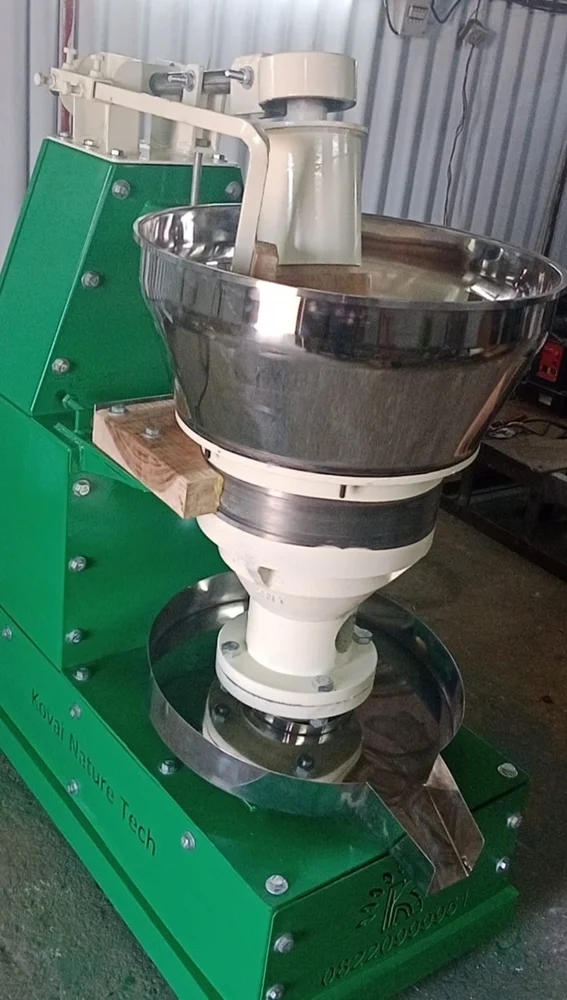

Pathar oil extraction machine

Name: Pathar oil extraction machine
Brand: KOVAI NATURE TECH
Price: 163500 INR
Availability: InStock

Price 163500 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Pathar oil extraction machine Specification

Type
Traditional Pathar Oil Extraction Machine

Material
Cast Iron and Mild Steel

Production Capacity
40-100 kg/hr

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Manual

Voltage
220-240 V

Power
2-3 HP Electric Motor

Pressure
High Mechanical Pressure (Manual)

Weight (kg)
210-350 kg (depending on model)

Dimension (L*W*H)
1100 x 600 x 1150 mm (approx.)

Color
Green/Blue (as per supply)

Noise Level
Low

Max Output per Hour
Up to 120 kg (depends on raw material)

Operation Mode
Manual/Belt Driven

Body Construction
Heavy Duty, Corrosion Resistant

Maintanence
Easy and Low

Oil Extraction Method
Cold Press/Mechanical

Applicable Seeds
Groundnut, Sesame, Mustard, Coconut, Sunflower, etc.

Pathar oil extraction machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Coimbatore

Supply Ability
5 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Pathar oil extraction machine

The Pathar Oil Extraction Machine is a high-performance cold press system designed for efficient peanut oil extraction. Built with a robust 3-phase, 3 HP motor, this machine ensures smooth and continuous operation with minimal manual intervention.

It is equipped with a traditional Pathar (stone) and wooden ulakki, delivering a superior crushing efficiency of 90% and above, helping retain the natural nutrients and purity of the oil.

The machine is user-friendly, durable, and ideal for small to medium-scale oil production units seeking consistent output and quality.

Additional Information:

Production Capacity: 5 Nos per Week
Delivery Time: 1 Week
Packaging Details: Wooden packing available on request

Versatile Oilseed Compatibility

Designed to process a wide range of oilseeds-including groundnut, sesame, mustard, coconut, sunflower, and more-this machine meets the diverse needs of oil producers. Its advanced cold-press mechanical method preserves nutrients, yielding pure, high-quality oil from each seed type with minimal waste.

Rugged and Reliable Construction

Built with heavy-duty cast iron and mild steel, the machine ensures long-lasting durability and resistance to corrosion. Its robust body withstands prolonged use, while the low-noise operation and compact design (1100 x 600 x 1150 mm) make it suitable for a variety of workspaces. Maintenance is easy and cost-effective, reducing downtime.

Efficient and User-Friendly Operation

This semi-automatic Pathar oil extraction machine is straightforward to operate, either manually or via belt drive, and features a manual control system for precise management. The high mechanical pressure ensures optimal extraction, while easy operation and cleaning appeal to both new and experienced operators.

FAQ's of Pathar oil extraction machine:

Q: How does the Pathar oil extraction machine operate?

A: The Pathar oil extraction machine operates through a cold press or mechanical method. Users control it manually or with a belt-driven mechanism. High mechanical pressure is applied to extract oil from various seeds, using a robust electric motor for consistent and efficient output.

Q: What types of seeds can be processed with this machine?

A: This machine is compatible with a diverse range of oilseeds, including groundnut, sesame, mustard, coconut, sunflower, and similar seeds. Its design accommodates different raw materials, delivering optimal oil extraction based on seed type.

Q: When is it ideal to use this machine for oil extraction?

A: The Pathar oil extraction machine is ideal for small to medium-scale oil producers requiring up to 100 kg of oil per hour. It's suitable for businesses or service providers seeking traditional, cold-pressed oil extraction while maintaining high output and product quality.

Q: Where can this machine be installed or used effectively?

A: Its sturdy construction and compact footprint make it suitable for installation in processing plants, medium-sized oil mills, rural enterprises, or workshops. It is supplied and serviced by manufacturers and suppliers across India, ensuring broad availability and support.

Q: What is the oil extraction process with this machine?

A: After preparing the selected seeds, they are loaded into the feeder. The machine, powered by a 2-3 HP electric motor, applies high mechanical pressure to press oil out of the seeds. The extracted oil is collected, while the remaining cake can be used as animal feed or fertilizer.

Q: How easy is it to maintain the Pathar oil extraction machine?

A: The machine features an easy and low-maintenance design. Components are accessible for quick cleaning and servicing, and the corrosion-resistant body minimizes the need for frequent repairs. Regular maintenance ensures consistent performance and prolongs its operational life.

Q: What are the main benefits of using this machine?

A: Using the Pathar oil extraction machine offers several advantages, including high oil yield, retention of nutritional value due to cold-press extraction, versatile seed compatibility, quiet operation, low maintenance requirements, and a durable build for long-term use in varied environments.
